●For use with rigid/solid and flexible/stranded conductors.

●Polycarbonate, UL 94V-0 flame-retardant shell.

●Spring force connector constructed from tinned copper plate, spring steel and steel frame.

●Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

●Color-coded for quick and easy identification.

●Hardened stainless steel insert restrict pull-out yet requires a very low insertion force.

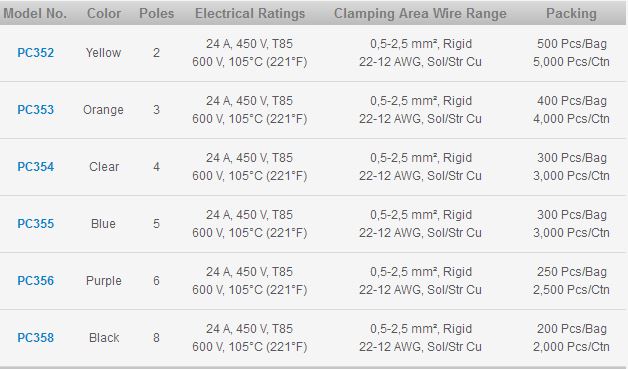

Item:PC352 push-in wire connector Dosenklemmen & compact terminal blocks

Color:Yellow

Dimension:19.0 L x 11.75 W x 10.45 H (mm)

Advantages:

● For use in building distribution and junction boxes.

● No twisting and taping required, insert stripped conductors into connector fully.

● Compact size design perfect for tight spaces.

● Number of strands for stranded conductors:

22AWG- 7 strands or less, 20AWG-10 strands or less

18AWG-16 strands or less,16AWG-26 strands or less

14AWG-19 strands or less,12AWG-19 strands or less

Item:PC353 push-in wire connector Dosenklemmen & compact terminal blocks

Color:Orange

Dimension:19.0 L x 15.9 W x 10.45 H (mm)

Advantages:

● For use in building distribution and junction boxes.

● No twisting and taping required, insert stripped conductors into connector fully.

● Compact size design perfect for tight spaces.

● Number of strands for stranded conductors:

22AWG- 7 strands or less, 20AWG-10 strands or less

18AWG-16 strands or less,16AWG-26 strands or less

14AWG-19 strands or less,12AWG-19 strands or less

Item:PC354 push-in wire connector Dosenklemmen & compact terminal blocks

Color:Clear

Dimension:19.0 L x 20.05 W x 10.45 H (mm)

Advantages:

● For use in building distribution and junction boxes.

● No twisting and taping required, insert stripped conductors into connector fully.

● Compact size design perfect for tight spaces.

● Number of strands for stranded conductors:

22AWG- 7 strands or less, 20AWG-10 strands or less

18AWG-16 strands or less,16AWG-26 strands or less

14AWG-19 strands or less,12AWG-19 strands or less

Item:PC355 push-in wire connector Dosenklemmen & compact terminal blocks

Color:Blue

Dimension:9.0 L x 24.2 W x 10.45 H

Advantages:

● For use in building distribution and junction boxes.

● No twisting and taping required, insert stripped conductors into connector fully.

● Compact size design perfect for tight spaces.

● Number of strands for stranded conductors:

22AWG- 7 strands or less, 20AWG-10 strands or less

18AWG-16 strands or less,16AWG-26 strands or less

14AWG-19 strands or less,12AWG-19 strands or less

Item:PC356 push-in wire connector Dosenklemmen & compact terminal blocks

Color:Purple

Dimension:9.0 L x 28.35 W x 10.45 H

Advantages:

● For use in building distribution and junction boxes.

● No twisting and taping required, insert stripped conductors into connector fully.

● Compact size design perfect for tight spaces.

● Number of strands for stranded conductors:

22AWG- 7 strands or less, 20AWG-10 strands or less

18AWG-16 strands or less,16AWG-26 strands or less

14AWG-19 strands or less,12AWG-19 strands or less

Item:PC358 push-in wire connector Dosenklemmen & compact terminal blocks

Color:Black

Dimension:19.0 L x 36.65 W x 10.45 H

Advantages:

● For use in building distribution and junction boxes.

● No twisting and taping required, insert stripped conductors into connector fully.

● Compact size design perfect for tight spaces.

● Number of strands for stranded conductors:

22AWG- 7 strands or less, 20AWG-10 strands or less

18AWG-16 strands or less,16AWG-26 strands or less

14AWG-19 strands or less,12AWG-19 strands or less
