●For use with 1 - 2,5m㎡ solid conductors.

●Polycarbonate and/or Polyamide 66, UL 94V-2 or 94V-0 flame-retardant shell.

●Spring force connector constructed from tinned copper or steel plate with copper strip and spring steel.

●Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

●Color-coded for quick and easy identification.

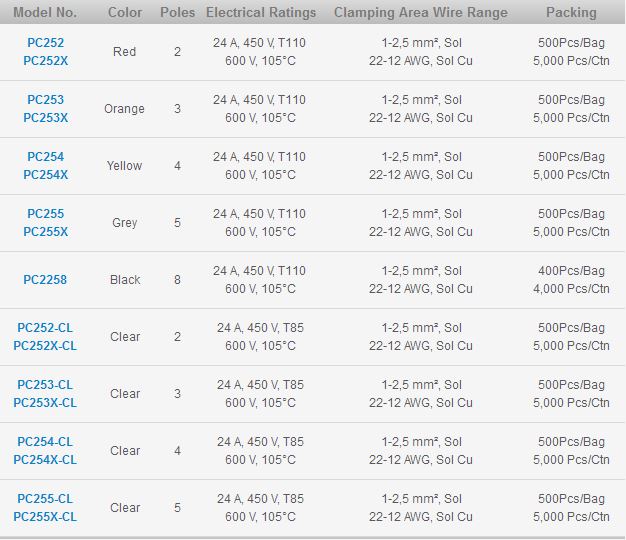

Item:PC252 / PC252X push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Red

Dimension:19.7 L x 10.5 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC252-CL/PC252X-CL push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Clear Body , Red Lip

Dimension:19.7 L x 10.5 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC253/PC253X push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Orange

Dimension:19.7 L x 13.5 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC253-CL/PC253X-CL push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Clear Body, Orange Lip

Dimension:19.7 L x 13.5 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC254/PC254X push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Yellow

Dimension:19.7 L x 17.1 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC254-CL/PC254X-CL push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Clear Body, Yellow Lip

Dimension:19.7 L x 17.1 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC255/PC255X push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Grey

Dimension:19.7 L x 21.9 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC255-CL/PC255X-CL push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Clear Body, Grey Lip

Dimension:19.7 L x 21.9 W x 9.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.

Item:PC2258 push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Black

Dimension:17.5 L x 17.8 W x 14.5 H (mm)

Advantages:

●Compact size design perfect for tight spaces.

●Do not require twisting and taping.

●Excellent for use in building distribution and junction boxes.

●Recommend to reuse with wire sizes larger than the previously removed.
