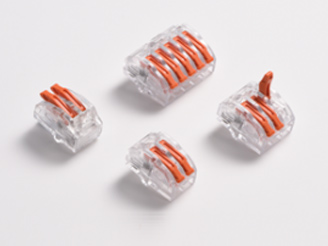

Compact Type PC225 Series
-
Detail
PC2252PC2253PC2254PC2255PC2258
|
product description
●25% more compact in size than original types with cost-saving effectiveness.
●For use with rigid / solid conductors.
●Polycarbonate and Polyamide 66, UL 94V-0 flame-retardant shell.
●Spring force connector constructed from tinned steel plate with copper strip and spring steel.
●Color-coded for quick and easy identification.

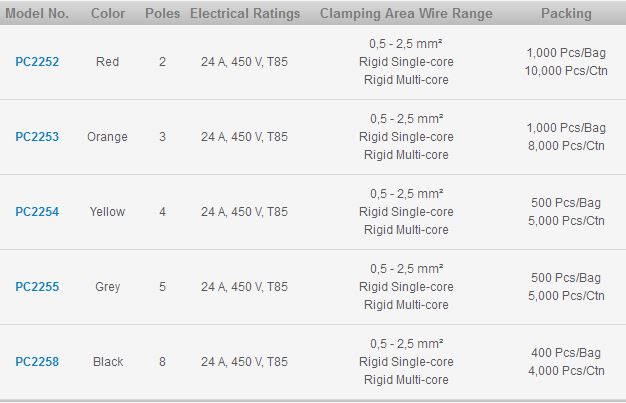

Product parameters
product description
Item:PC2252 push-in wire connectors,Dosenklemmen & compact terminal blocks
Color:Red
Dimension:17.65 L x 10.0 W x 9.3 H (mm)
Advantages:
● Compact size design perfect for tight spaces.
● No twisting and taping required, insert stripped conductors into connector fully.
● For use in building distribution and junction boxes.
● Recommend to reuse with wire sizes larger than the previously removed.
Product details
product description
Item:PC2253 push-in wire connectors,Dosenklemmen & compact terminal blocks
Color:Orange
Dimension:17.65 L x 13.2 W x 9.3 H (mm)
Advantages:
● Compact size design perfect for tight spaces.
● No twisting and taping required, insert stripped conductors into connector fully.
● For use in building distribution and junction boxes.
● Recommend to reuse with wire sizes larger than the previously removed.
Product details
product description
Item:PC2254 push-in wire connectors,Dosenklemmen & compact terminal blocks
Color:Yellow
Dimension:17.65 L x 16.8 W x 9.3 H (mm)
Advantages:
● Compact size design perfect for tight spaces.
● No twisting and taping required, insert stripped conductors into connector fully.
● For use in building distribution and junction boxes.
● Recommend to reuse with wire sizes larger than the previously removed.
Product details
product description
Item:PC2255 push-in wire connectors,Dosenklemmen & compact terminal blocks
Color:Grey
Dimension:17.65 L x 20.4 W x 9.3 H (mm)
Advantages:
● Compact size design perfect for tight spaces.
● No twisting and taping required, insert stripped conductors into connector fully.
● For use in building distribution and junction boxes.
● Recommend to reuse with wire sizes larger than the previously removed.
Product details
product description
Item:PC2258 push-in wire connectors,Dosenklemmen & compact terminal blocks
Color:Black
Dimension:17.5 L x 17.8 W x 14.5 H (mm)
Advantages:
● Compact size design perfect for tight spaces.
● No twisting and taping required, insert stripped conductors into connector fully.
● For use in building distribution and junction boxes.
● Recommend to reuse with wire sizes larger than the previously removed.
