●Accpet conductors 0,5 - 1,5m㎡

●For use with rigid / solid conductors.

●Polyamide 66, UL 94V-2 flame-retardant shell.

●Spring force connector constructed from tinned steel with copper plates.

●Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

●Compact size design perfect for tight spaces.

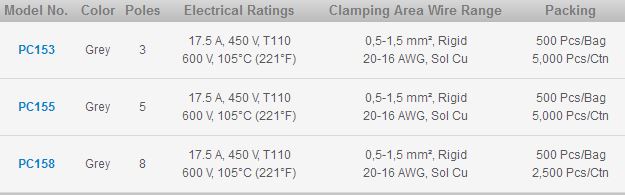

Item:PC153 push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Grey

Dimension:18.5 L x 11.4 W x 8.8 W (mm)

Advantages:

● Compact size design perfect for tight spaces.

● No twisting and taping required, insert stripped conductors into connector fully.

● For use in building distribution and junction boxes.

● Recommend to reuse with wire sizes larger than the previously removed one.

Item:PC155 push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Grey

Dimension:18.5 L x 17.2 W x 8.8 H (mm)

Advantages:

● Compact size design perfect for tight spaces.

● No twisting and taping required, insert stripped conductors into connector fully.

● For use in building distribution and junction boxes.

● Recommend to reuse with wire sizes larger than the previously removed one.

Item:PC158 push-in wire connectors,Dosenklemmen & compact terminal blocks

Color:Grey

Dimension:18.5 L x 26.0 W x 8.8 H (mm)

Advantages:

● Compact size design perfect for tight spaces.

● No twisting and taping required, insert stripped conductors into connector fully.

● For use in building distribution and junction boxes.

● Recommend to reuse with wire sizes larger than the previously removed one.
