●Terminal Strips & Lüsterklemmen

●Polyamide 66, UL 94V-2 flame-retardant housing.

●Zinc-plated steel contacts provided with or without brass strips.

●Recessed screws and tubular contacts provide added safety and help prevent short circuits.

●12 poles, can be cut into desired poles.

●For use in electrical appliances, lighting and building wiring. Especially in DIY & Installation applications.

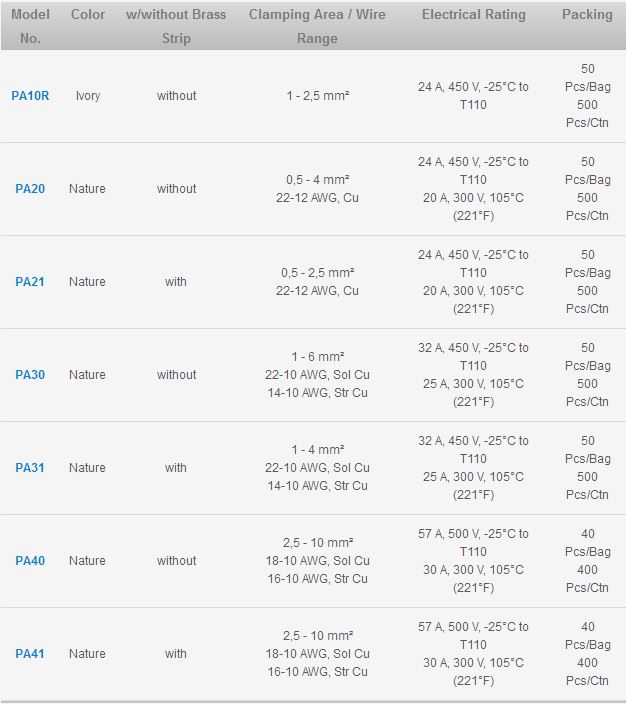

Item No:PA10R

Brass Strip:without

Length:117.2mm

Width:18.8mm

Height:16.0mm

Pitch:10.0mm

Fixing Hole:3.25mm

Wiring Hole:3.4 ± 0.1mm

Raised Base:2.4mm

Screw:M3.0 x 6.9

Poles:12

Item No:PA20

Brass Strip:without

Length:96.2mm

Width:17.0mm

Height:14.5mm

Pitch:8.2mm

Fixing Hole:2.9mm

Wiring Hole:3.2 ± 0.1mm

Raised Base:1.0mm

Screw:M2.6 x 5

Poles:12

Item No:PA21

Brass Strip:with

Length:96.2mm

Width:17.0mm

Height:14.5mm

Pitch:8.2mm

Fixing Hole:2.9mm

Wiring Hole:3.2 ± 0.1mm

Raised Base:1.0mm

Screw:M2.6 x 5

Poles:12

Item No:PA30

Brass Strip:without

Length:116.8mm

Width:19.2mm

Height:16.7mm

Pitch:10.0mm

Fixing Hole:3.6mm

Wiring Hole:3.4 ± 0.1mm

Raised Base:1.0mm

Screw:M3.0 x 6

Poles:12

Item No:PA31

Brass Strip:with

Length:116.8mm

Width:19.2mm

Height:16.7mm

Pitch:10.0mm

Fixing Hole:3.6mm

Wiring Hole:3.4 ± 0.1mm

Raised Base:1.0mm

Screw:M3.0 x 6

Poles:12

Item No:PA40

Brass Strip:without

Length:141.0mm

Width:23.5mm

Height:18.7mm

Pitch:12.0mm

Fixing Hole:3.9mm

Wiring Hole:4.5 ± 0.1mm

Raised Base:1.2mm

Screw:M3.5 x 7

Poles:12

Item No:PA41

Brass Strip:with

Length:141.0mm

Width:23.5mm

Height:18.7mm

Pitch:12.0mm

Fixing Hole:3.9mm

Wiring Hole:4.5 ± 0.1mm

Raised Base:1.2mm

Screw:M3.5 x 7

Poles:12
