●Terminal Strips & Lüsterklemmen

●Polypropylene, UL 94V-2 flame-retardant housing.

●Zinc-plated steel contacts.

●Recessed screws and tubular contacts provide added safety and help prevent short circuits.

●Easy cutting design.

●Save more cost with no compromise on quality.

●For use in electrical appliances, lighting and building wiring. Especially in DIY & Installation applications.

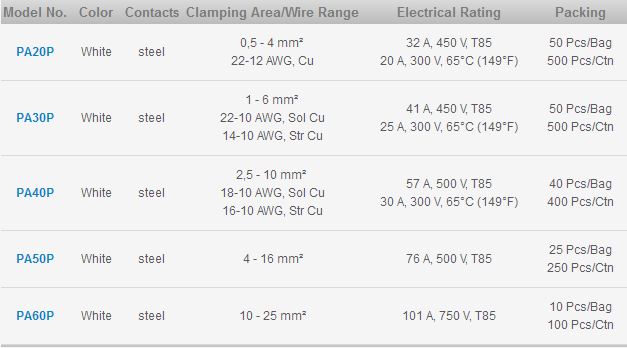

Item No:PA20P

Contacts:steel

Length:96.2mm

Width:17.0mm

Height:14.5mm

Pitch:8.2mm

Fixing Hole:2.9mm

Wiring Hole:3.2 ± 0.1mm

Raised Base:1.0mm

Screw:M2.6 x 5

Poles:12

Item No:PA30P

Contacts:steel

Length:116.8mm

Width:19.2mm

Height:16.7mm

Pitch:10.0mm

Fixing Hole:3.6mm

Wiring Hole:3.4 ± 0.1mm

Raised Base:1.0mm

Screw:M3.0 x 6

Poles:12

Item No:PA40P

Contacts:steel

Length:140.5mm

Width:23.5mm

Height:18.7mm

Pitch:12.0mm

Fixing Hole:3.9mm

Wiring Hole:4.5 ± 0.1mm

Raised Base:1.2mm

Screw:M3.5 x 7

Poles:12

Item No:PA40P

Contacts:steel

Length:169.8mm

Width:25.0mm

Height:20.8mm

Pitch:14.5mm

Fixing Hole:4.3mm

Wiring Hole:6.5 ± 0.1mm

Raised Base:1.0mm

Screw:M4.0 x 9

Poles:12

Item No:PA60P

Contacts:steel

Length:193.5mm

Width:36.0mm

Height:26.1mm

Pitch:16.5mm

Fixing Hole:4.2mm

Wiring Hole:7.0 ± 0.1mm

Raised Base:1.0mm

Screw:M5.0 x 11

Poles:12
