●Terminal Strips & Lüsterklemmen

●Polyamide 66, UL 94V-2 flame-retardant housing.

●Nickel-plated brass contacts with or without steel wire protectors.

●Recessed screws and tubular contacts provide added safety and help prevent short circuits.

●12 poles, can be cut into desired poles.

●For use in electrical appliances, lighting and building wiring. Especially in OEM & Industry applications.

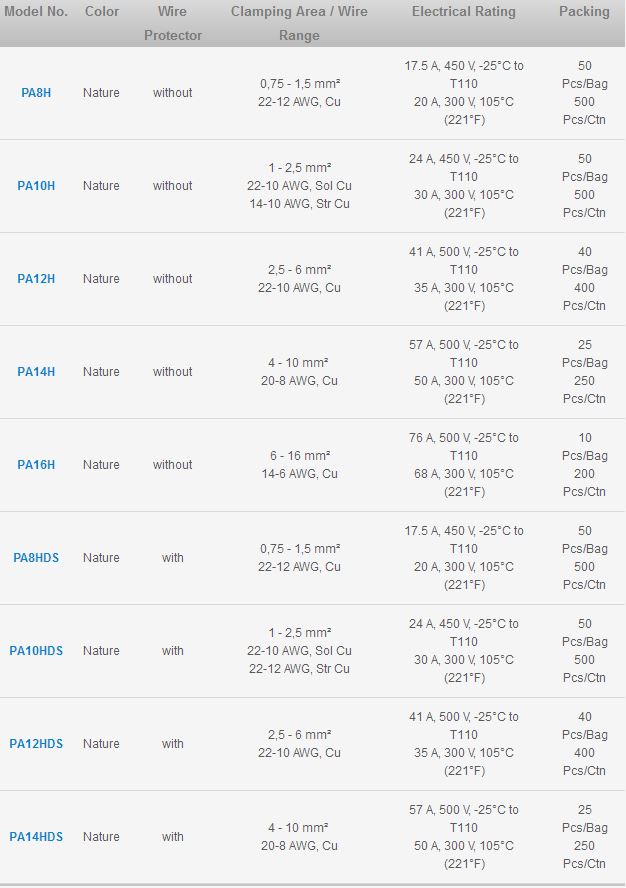

Item No:PA8H

Length:96.2mm

Width:7.0mm

Height:14.3mm

Pitch:8.2mm

Fixing Hole:2.9mm

Wiring Hole:2.8 ± 0.1mm

Raised Base:1.2mm

Screw:M2.6 x 5

Poles:12

Item No:PA8HDS

Length:96.2mm

Width:17.0mm

Height:14.3mm

Pitch:8.2mm

Fixing Hole:2.9mm

Wiring Hole:2.8 ± 0.1mm

Raised Base:1.2mm

Screw:M2.6 x5

Poles:12

Item No:PA10H

Length:117.2mm

Width:20.0mm

Height:16.4mm

Pitch:10.0mm

Fixing Hole:3.6mm

Wiring Hole:3.4 ± 0.1mm

Raised Base:1.0mm

Screw:M3.0 x 6

Poles:12

Item No:PA10HDS

Length:117.2mm

Width:20.0mm

Height:16.4mm

Pitch:10.0mm

Fixing Hole:3.6mm

Wiring Hole:3.4 ± 0.1mm

Raised Base:1.0mm

Screw:M3.0 x 6

Poles:12

Item No:PA12H

Length:140.7mm

Width:23.8mm

Height:19.0mm

Pitch:12.0mm

Fixing Hole:3.9mm

Wiring Hole:4.2 ± 0.1mm

Raised Base:0.8mm

Screw:M3.5 x 7

Poles:12

Item No:PA12HDS

Length:140.7mm

Width:23.8mm

Height:19.0mm

Pitch:12.0mm

Fixing Hole:3.9mm

Wiring Hole:4.2 ± 0.1mm

Raised Base:0.8mm

Screw:M3.5 x 7

Poles:12

Item No:PA14H

Length:158.0mm

Width:25.6mm

Height:25.0mm

Pitch:13.5mm

Fixing Hole:4.4mm

Wiring Hole:5.0 ± 0.1mm

Raised Base:2.5mm

Screw:M4.0 x 9

Poles:12

Item No:PA14HDS

Length:158.0mm

Width:25.6mm

Height:25.0mm

Pitch:13.5mm

Fixing Hole:4.4mm

Wiring Hole:5.0 ± 0.1mm

Raised Base:2.5mm

Screw:M4.0 x 9

Poles:12

Item No:PA16H

Length:170.0mm

Width:28.1mm

Height:23.0mm

Pitch:14.5mm

Fixing Hole:4.2mm

Wiring Hole:6.0 ± 0.1mm

Raised Base:2.0mm

Screw:M4.0 x 9

Poles:12
