●Terminal Strips & Lüsterklemmen

●Polypropylene, UL 94V-2 flame-retardant housing.

●Nickel-plated brass contacts.

●Recessed screws and tubular contacts provide added safety and help prevent short circuits.

●12 poles, can be cut into desired poles.

●For use in electrical appliances, lighting and building wiring. Especially in DIY & Installation applications.

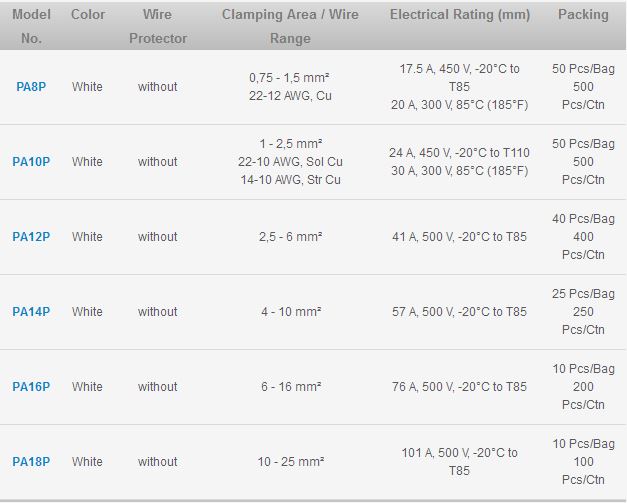

Item No:PA8P

Length:96.0mm

Width:16.3mm

Height:14.5mm

Pitch:8.2mm

Fixing Hole:2.9mm

Wiring Hole:2.8 ± 0.1mm

Raised Base:1.2mm

Screw:M2.6 x 5

Poles:12

Item No:PA10P

Length:116.2mm

Width:20.1mm

Height:16.7mm

Pitch:10.0mm

Fixing Hole:3.6mm

Wiring Hole:3.4 ± 0.1mm

Raised Base:1.0mm

Screw:M3.0 x 6

Poles:12

Item No:PA12P

Length:139.6mm

Width:23.4mm

Height:18.6mm

Pitch:12.0mm

Fixing Hole:3.8mm

Wiring Hole:4.2 ± 0.1mm

Raised Base:0.8mm

Screw:M3.5 x 7

Poles:12

Item No:PA14P

Length:158.0mm

Width:25.5mm

Height:25.0mm

Pitch:13.5mm

Fixing Hole:4.3mm

Wiring Hole:5.0 ± 0.1mm

Raised Base:2.5mm

Screw:M4.0 x 9

Poles:12

Item No:PA16P

Length:169.8mm

Width:28.0mm

Height:23.0mm

Pitch:14.5mm

Fixing Hole:4.2mm

Wiring Hole:6.0 ± 0.1mm

Raised Base:2.0mm

Screw:M4.0 x 9

Poles:12

Item No:PA18P

Length:194.4mm

Width:36.9mm

Height:28.7mm

Pitch:16.5mm

Fixing Hole:4.2mm

Wiring Hole:7.0 ± 0.1mm

Raised Base:2.5mm

Screw:M5.0 x 11

Poles:12
